0x00 基础环境

环境准备:

  • 1) VMware Workstation 16
  • 2) OS 版本&架构: CentOS/7.9.2009/x86_64/ 官网下载地址
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    # 需求选择:此处测试选择使用 `CentOS-7-x86_64-DVD-2009.iso` 进行安装桌面版本的操作,选择CentOS-7-x86_64-Minimal-2009.iso进行KVM虚拟机安装
    CentOS-7-x86_64-DVD-2009.iso 04-Nov-2020 19:37 4G
    CentOS-7-x86_64-DVD-2009.iso 04-Nov-2020 19:37 4G
    CentOS-7-x86_64-DVD-2009.torrent 06-Nov-2020 22:44 176K
    CentOS-7-x86_64-Everything-2009.iso 02-Nov-2020 23:18 10G
    CentOS-7-x86_64-Everything-2009.torrent 06-Nov-2020 22:44 381K
    CentOS-7-x86_64-Minimal-2009.iso 03-Nov-2020 22:55 973M
    CentOS-7-x86_64-Minimal-2009.torrent 06-Nov-2020 22:44 39K
    CentOS-7-x86_64-NetInstall-2009.iso 27-Oct-2020 00:26 575M
    CentOS-7-x86_64-NetInstall-2009.torrent 06-Nov-2020 22:44 23K


0x01 基础步骤

描述: 当基础环境准备好后我们就需要开始创建 KVM-Server 的虚拟机了,在我们准备的 VMware Workstation 16 进行配置基础的操作系统,然后在此系统中安装KVM相应软件。

  • Step 1.如图所示根据需求进行配置虚拟机,注意必须勾选虚拟化引擎来或者硬件辅助虚拟化的支持,例如虚拟化 Intel VT-x/EPT 或 AMD-V/RVI(V)
WeiyiGeek.VM虚拟机创建

WeiyiGeek.VM虚拟机创建

  • Step 2.选择创建带有桌面的CentOS 7的版本,并且开启网络和设置主机名称方便后续连接。

    WeiyiGeek.KVM-Server虚拟配置

    WeiyiGeek.KVM-Server虚拟配置

  • Step 3.安装完成启动系统并进入以下界面后,输入对于的命令进行简单设置与查看

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    # (0) 内核查看 (一般正常版本在2.6以上)
    $ uname -a
    Linux kvm-server 3.10.0-1160.el7.x86_64 #1 SMP Mon Oct 19 16:18:59 UTC 2020 x86_64 x86_64 x86_64 GNU/Linux


    # (1) 关闭和禁用防火墙
    [[email protected] ~]# systemctl stop firewalld.service
    [[email protected] ~]# systemctl disable firewalld.service
    Removed symlink /etc/systemd/system/multi-user.target.wants/firewalld.service.
    Removed symlink /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.

    # (2) 关闭selinux
    [[email protected] ~]# sed -i "s/^SELINUX=enforcing/SELINUX=disabled/g" /etc/sysconfig/selinux
    [[email protected] ~]# setenforce 0

    # (3) 查看CPU是否支持VT技术
    grep -E 'vmx|svm' /proc/cpuinfo
    # 本机支持的vmx的虚拟化即Intel的处理器支持的。(有几个处理器就显示几个flags)
    flags : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush mmx fxsr sse sse2 ss ht syscall nx pdpe1gb rdtscp lm constant_tsc arch_perfmon nopl xtopology tsc_reliable nonstop_tsc eagerfpu pni pclmulqdq vmx
WeiyiGeek.简单设置与查看

WeiyiGeek.简单设置与查看

  • Step 4.环境清理卸载系统原本存在的KVM以及安装新的软件

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    # 1.旧的版本
    rpm -qa | egrep 'qemu|virt|kvm'
    # libvirt-daemon-driver-nwfilter-4.5.0-36.el7.x86_64
    # libvirt-daemon-driver-storage-mpath-4.5.0-36.el7.x86_64
    # libvirt-libs-4.5.0-36.el7.x86_64
    # libvirt-gobject-1.0.0-1.el7.x86_64
    # qemu-guest-agent-2.12.0-3.el7.x86_64
    # libvirt-daemon-driver-storage-logical-4.5.0-36.el7.x86_64
    # libvirt-daemon-driver-interface-4.5.0-36.el7.x86_64
    # libvirt-glib-1.0.0-1.el7.x86_64
    # libgovirt-0.3.4-5.el7.x86_64
    # virt-what-1.18-4.el7.x86_64
    # libvirt-daemon-driver-storage-disk-4.5.0-36.el7.x86_64
    # libvirt-daemon-driver-storage-gluster-4.5.0-36.el7.x86_64
    # libvirt-daemon-driver-storage-4.5.0-36.el7.x86_64
    # libvirt-daemon-driver-network-4.5.0-36.el7.x86_64
    # libvirt-daemon-config-network-4.5.0-36.el7.x86_64
    # libvirt-daemon-driver-nodedev-4.5.0-36.el7.x86_64
    # qemu-img-1.5.3-175.el7.x86_64
    # libvirt-daemon-driver-storage-core-4.5.0-36.el7.x86_64
    # libvirt-daemon-driver-storage-iscsi-4.5.0-36.el7.x86_64
    # libvirt-daemon-driver-storage-rbd-4.5.0-36.el7.x86_64
    # qemu-kvm-common-1.5.3-175.el7.x86_64
    # libvirt-daemon-driver-qemu-4.5.0-36.el7.x86_64
    # libvirt-daemon-driver-secret-4.5.0-36.el7.x86_64
    # ipxe-roms-qemu-20180825-3.git133f4c.el7.noarch
    # qemu-kvm-1.5.3-175.el7.x86_64
    # libvirt-daemon-driver-storage-scsi-4.5.0-36.el7.x86_64
    # libvirt-daemon-kvm-4.5.0-36.el7.x86_64
    # libvirt-gconfig-1.0.0-1.el7.x86_64
    # libvirt-daemon-4.5.0-36.el7.x86_64

    # 2.卸载
    yum remove `rpm -qa | egrep 'qemu|virt|kvm'` -y

    # 3.清空目录文件夹
    rm -rf /var/lib/libvirt/ /etc/libvirt

    # 4.安装软件(如果安装过程出错请检查是否是操作系统的问题-此处我是很顺利的)
    yum install *qemu* *virt* librbd1-devel -y # CentOS 7
    # yum upgrade rpm -y && yum install *qemu* *virt* librbd1-devel -y # CentOS 8
  • Step 5.在所谓的KVM技术中运用到的就是 QEMU+KVM的组合实现真正意义上的服务器虚拟化。

    1
    2
    3
    4
    5
    6
    - KVM : 负责 CPU的虚拟化 + 内存的虚拟化 但却不能模拟其它设备。
    - QEMU : 负责 IO设备的模拟例如磁盘 和 网络
    # 安装的包简单介绍
    1) qemu-kvm : 主包
    2) libvirt : 调用KVM虚拟机技术的 Api 接口主要用于管理的作用。
    3) virt-manager : 图形管理程序与hypervisor进行交互的作用。
  • Step 6.安装完成后启动libvirtd服务并查看KVM模块是是否安装

    1
    2
    3
    4
    5
    [[email protected] ~]# systemctl start libvirtd.service && systemctl enable libvirtd.service
    [[email protected] ~]# lsmod | grep "kvm"
    kvm_intel 188740 0
    kvm 637289 1 kvm_intel
    irqbypass 13503 1 kvm

0x02 安装 GuestOS

GuestOS安装的几种方式:

  • 1.图形化方式
  • 2.完全文本模式 (现场配置虚拟机的规格)
  • 3.命令行模式 (模板镜像 + 配置文件)


1.图形化方式

  • Step 1.可以通过命令行模式或者在界面中点击运行虚拟系统管理器都可以
    1
    virt-manager
    WeiyiGeek.virt-manager

    WeiyiGeek.virt-manager

  • Step 2.选择本地介质安装(采用前面我们下载的CentOS精简版镜像),其安装虚拟机方式与VMware类似,不在类似请看下图
WeiyiGeek.VM虚拟机新建

WeiyiGeek.VM虚拟机新建

  • Step 3.QEMU/KVM 创建的VM1虚拟机配置查看,并且点击开始安装,后续centos7安装流程大致相同此处不在讲述。
WeiyiGeek.QEMU/KVM

WeiyiGeek.QEMU/KVM

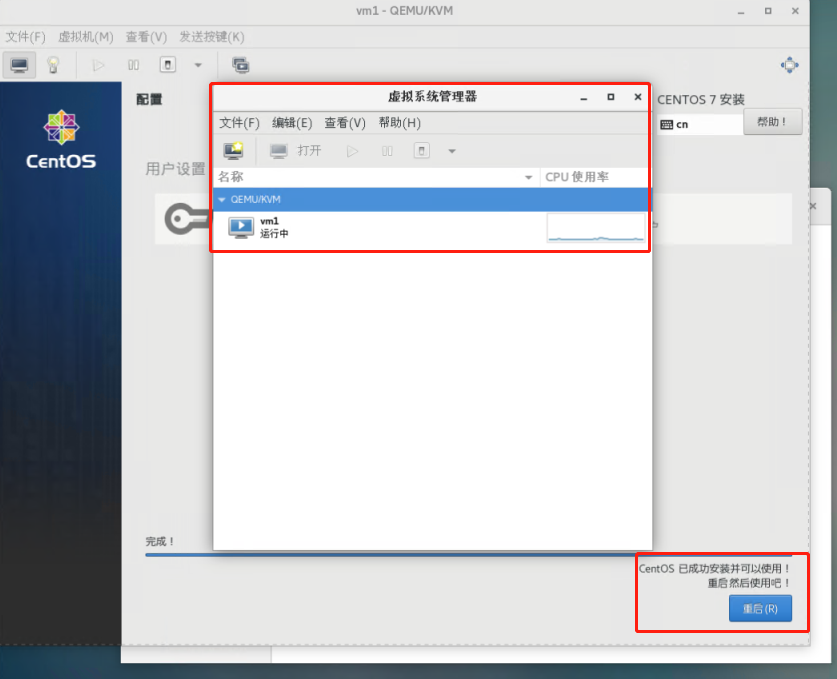

  • Step 4.GuestOS 安装成功重启机器。
WeiyiGeek.GuestOS

WeiyiGeek.GuestOS

Tips : 宿主机必须开启路由转发(才能使用桥接网络·重点)之后重启一下 libvirtd.service

1
2
echo 'net.ipv4.ip_forward = 1' | tee -a /etc/sysctl.conf && sysctl -p
systemctl restart libvirtd.service


2.完全文本模式

描述: 此种方式应用环境是服务器与客户端均没有图形界面时的场景使用。

  • Step 1.安装前查看你KVM支持的OS版本;

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    [email protected] ~]# osinfo-query os | grep centos
    centos-stream8 | CentOS Stream 8 | 8 | http://centos.org/centos-stream/8
    centos5.0 | CentOS 5.0 | 5.0 | http://centos.org/centos/5.0
    centos5.1 | CentOS 5.1 | 5.1 | http://centos.org/centos/5.1
    centos5.10 | CentOS 5.10 | 5.10 | http://centos.org/centos/5.10
    centos5.11 | CentOS 5.11 | 5.11 | http://centos.org/centos/5.11
    centos5.2 | CentOS 5.2 | 5.2 | http://centos.org/centos/5.2
    centos5.3 | CentOS 5.3 | 5.3 | http://centos.org/centos/5.3
    centos5.4 | CentOS 5.4 | 5.4 | http://centos.org/centos/5.4
    centos5.5 | CentOS 5.5 | 5.5 | http://centos.org/centos/5.5
    centos5.6 | CentOS 5.6 | 5.6 | http://centos.org/centos/5.6
    centos5.7 | CentOS 5.7 | 5.7 | http://centos.org/centos/5.7
    centos5.8 | CentOS 5.8 | 5.8 | http://centos.org/centos/5.8
    centos5.9 | CentOS 5.9 | 5.9 | http://centos.org/centos/5.9
    centos6.0 | CentOS 6.0 | 6.0 | http://centos.org/centos/6.0
    centos6.1 | CentOS 6.1 | 6.1 | http://centos.org/centos/6.1
    centos6.10 | CentOS 6.10 | 6.10 | http://centos.org/centos/6.10
    centos6.2 | CentOS 6.2 | 6.2 | http://centos.org/centos/6.2
    centos6.3 | CentOS 6.3 | 6.3 | http://centos.org/centos/6.3
    centos6.4 | CentOS 6.4 | 6.4 | http://centos.org/centos/6.4
    centos6.5 | CentOS 6.5 | 6.5 | http://centos.org/centos/6.5
    centos6.6 | CentOS 6.6 | 6.6 | http://centos.org/centos/6.6
    centos6.7 | CentOS 6.7 | 6.7 | http://centos.org/centos/6.7
    centos6.8 | CentOS 6.8 | 6.8 | http://centos.org/centos/6.8
    centos6.9 | CentOS 6.9 | 6.9 | http://centos.org/centos/6.9
    centos7.0 | CentOS 7 | 7 | http://centos.org/centos/7.0
    centos8 | CentOS 8 | 8 | http://centos.org/centos/8
  • Step 2.安装命令;

    1
    2
    3
    4
    5
    6
    7
    8
    # 1.帮助查看
    man virt-install

    # 2.采用FTP的格式进行安装(注意需要将OS镜像挂载到此ftp目录下)
    virt-install --connnect qemu:///system \
    -n vm3 -r 2048 --vcpus=1 --disk-path=/var/lib/libvirt/images/vm9.img,size=7 \
    --os-type=linux --os-variant=centos7.0 -x console=ttyS0 --nographics \
    --location=ftp://192.168.10.230/centos7/

TIPS : 安装时给与的内存必须是2G及以上否则将报如下错误 Dracut-Initqueue[552]:/sbin/dmsquash-live-root:line 273: printf: write error : no space left on device


3.命令行模式 (推荐方式)

描述: 通过此魔术我们可以轻松的创建我们的虚拟机,此种模式创建虚拟机依赖于虚拟机配置文件和虚拟机虚拟机img介质。

  • Step 1.虚拟机组成部分

    1
    2
    3
    4
    [[email protected] ~]# ls /etc/libvirt/qemu
    networks vm1.xml
    [[email protected] ~]# ls /var/lib/libvirt/images/
    vm1.qcow2
  • Step 2.根据现有模板镜像配置文件创建虚拟机即复制磁盘镜像与配置文件

    1
    2
    [[email protected] ~]# cp /etc/libvirt/qemu/vm1.xml /etc/libvirt/qemu/vm2.xml
    [[email protected] ~]# cp /var/lib/libvirt/images/vm1.qcow2 /var/lib/libvirt/images/vm2.qcow2
  • Step 3.配置文件修改

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    # 1.虚拟机UUID修改
    [[email protected] ~]# uuidgen
    960cc2bb-9731-4101-94e6-160c4263bace

    # 2.虚拟机配置文件
    <!--
    WARNING: THIS IS AN AUTO-GENERATED FILE. CHANGES TO IT ARE LIKELY TO BE
    OVERWRITTEN AND LOST. Changes to this xml configuration should be made using: virsh edit vm2 or other application using the libvirt API.
    -->

    <domain type='kvm'>
    <!-- 修改点1.名称与UUID -->
    <name>vm2</name>
    <uuid>960cc2bb-9731-4101-94e6-160c4263bace</uuid>
    <memory unit='KiB'>2097152</memory>
    <currentMemory unit='KiB'>2097152</currentMemory>
    <vcpu placement='static'>2</vcpu>
    <os>
    <type arch='x86_64' machine='pc-i440fx-rhel7.0.0'>hvm</type>
    <boot dev='hd'/>
    </os>
    <features>
    <acpi/>
    <apic/>
    </features>
    <cpu mode='custom' match='exact' check='partial'>
    <model fallback='allow'>Broadwell-noTSX-IBRS</model>
    <feature policy='require' name='md-clear'/>
    <feature policy='require' name='spec-ctrl'/>
    <feature policy='require' name='ssbd'/>
    </cpu>
    <clock offset='utc'>
    <timer name='rtc' tickpolicy='catchup'/>
    <timer name='pit' tickpolicy='delay'/>
    <timer name='hpet' present='no'/>
    </clock>
    <on_poweroff>destroy</on_poweroff>
    <on_reboot>restart</on_reboot>
    <on_crash>destroy</on_crash>
    <pm>
    <suspend-to-mem enabled='no'/>
    <suspend-to-disk enabled='no'/>
    </pm>
    <devices>
    <emulator>/usr/libexec/qemu-kvm</emulator>
    <!-- 修改点2.虚拟机磁盘镜像 -->
    <disk type='file' device='disk'>
    <driver name='qemu' type='qcow2'/>
    <source file='/var/lib/libvirt/images/vm2.qcow2'/>
    <target dev='vda' bus='virtio'/>
    <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/>
    </disk>
    <disk type='file' device='cdrom'>
    <driver name='qemu' type='raw'/>
    <target dev='hda' bus='ide'/>
    <readonly/>
    <address type='drive' controller='0' bus='0' target='0' unit='0'/>
    </disk>
    <controller type='usb' index='0' model='ich9-ehci1'>
    <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
    <master startport='0'/>
    <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0' multifunction='on'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci2'>
    <master startport='2'/>
    <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x1'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci3'>
    <master startport='4'/>
    <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x2'/>
    </controller>
    <controller type='pci' index='0' model='pci-root'/>
    <controller type='ide' index='0'>
    <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/>
    </controller>
    <controller type='virtio-serial' index='0'>
    <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/>
    </controller>
    <!-- 修改点3.网络Mac地址(virtio == NAT 转发) -->
    <interface type='network'>
    <mac address='52:54:00:64:97:40'/>
    <source network='default'/>
    <model type='virtio'/>
    <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>
    </interface>
    <serial type='pty'>
    <target type='isa-serial' port='0'>
    <model name='isa-serial'/>
    </target>
    </serial>
    <console type='pty'>
    <target type='serial' port='0'/>
    </console>
    <channel type='unix'>
    <target type='virtio' name='org.qemu.guest_agent.0'/>
    <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <channel type='spicevmc'>
    <target type='virtio' name='com.redhat.spice.0'/>
    <address type='virtio-serial' controller='0' bus='0' port='2'/>
    </channel>
    <input type='tablet' bus='usb'>
    <address type='usb' bus='0' port='1'/>
    </input>
    <input type='mouse' bus='ps2'/>
    <input type='keyboard' bus='ps2'/>
    <graphics type='spice' autoport='yes'>
    <listen type='address'/>
    <image compression='off'/>
    </graphics>
    <sound model='ich6'>
    <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>
    </sound>
    <video>
    <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/>
    <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>
    </video>
    <redirdev bus='usb' type='spicevmc'>
    <address type='usb' bus='0' port='2'/>
    </redirdev>
    <redirdev bus='usb' type='spicevmc'>
    <address type='usb' bus='0' port='3'/>
    </redirdev>
    <memballoon model='virtio'>
    <address type='pci' domain='0x0000' bus='0x00' slot='0x08' function='0x0'/>
    </memballoon>
    <rng model='virtio'>
    <backend model='random'>/dev/urandom</backend>
    <address type='pci' domain='0x0000' bus='0x00' slot='0x09' function='0x0'/>
    </rng>
    </devices>
    </domain>
  • Step 4.虚拟机创建

    1
    2
    [[email protected] ~]# virsh define /etc/libvirt/qemu/vm2.xml
    # 定义域 vm2(从 /etc/libvirt/qemu/vm2.xml)
  • Step 5.宿主机开启路由转发(才能使用桥接网络重点)之后重启一哈 libvirtd.service
1
2
echo 'net.ipv4.ip_forward = 1' | tee -a /etc/sysctl.conf && sysctl -p
systemctl restart libvirtd.service
  • Step 6.虚拟机运行结果
WeiyiGeek.成功创建并连接

WeiyiGeek.成功创建并连接


4.飞机舱cockpit管理KVM服务器

Tips : 我们可以使用飞机驾驶舱安装与管理虚拟机实际上就是通过一个Web界面来管理服务器,安装完成后浏览器访问服务地址: 9090

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
# 安装&启用
yum install cockpit -y; \
systemctl start cockpit

# 服务地址查看
ip addr | grep " inet "
# inet 127.0.0.1/8 scope host lo
# inet 192.168.228.128/24 brd 192.168.228.255 scope global noprefixroute dynamic ens33

# 停止服务
systemctl stop cockpit.socket

# 端口配置
vim /etc/systemd/system/cockpit.socket.d/listen.conf
# [Unit]
# Description=Cockpit Web Service Socket
# Documentation=man:cockpit-ws(8)
# Wants=cockpit-motd.service

# [Socket]
# ListenStream=9090
# ExecStartPost=-/usr/share/cockpit/motd/update-motd '' localhost
# ExecStartPost=-/bin/ln -snf active.motd /run/cockpit/motd
# ExecStopPost=-/bin/ln -snf /usr/share/cockpit/motd/inactive.motd /run/cockpit/motd

# [Install]
# WantedBy=sockets.target

sudo systemctl daemon-reload
sudo systemctl restart cockpit.socket
sudo systemctl restart cockpit.service

WeiyiGeek.cockpit-Web

WeiyiGeek.cockpit-Web


0x03 升级GuestOS

描述: 在实际的应用场景中,我们常常要对已安装的GuestOS进行添加硬件设备和升级现有的资源配置。

实现方式说明

  • 1.图像界面操作(简单)
  • 2.配置文件操作(手动-无界面的情况下)


图像界面操作

虚拟机添加网卡设备流程

  • Step 1.首先需要关闭要添加硬件的虚拟机

  • Step 2.双击虚拟机在打开的对话框点击上方的 View 并点击 Details(详情),点击 Add Hardware就可以选择要添加的虚拟硬件;

  • Step 3.此处以添加网卡为例。

WeiyiGeek.添加网卡

  • Step 4.删除添加的虚拟硬件步骤点击要删除的硬件, 例如NIC:20:b9:da然后点击右下角的删除即可。


配置文件操作

虚拟机添加磁盘设备流程

  • Step 1.同样需要先关闭要添加硬件的虚拟机VM2;

  • Step 2.创建要添加的磁盘镜像文件(qcow2格式);

    1
    2
    $ qemu-img create -f qcow2 /var/lib/libvirt/images/vm2-1.qcow2 1G
    > Formatting '/var/lib/libvirt/images/vm2-1.qcow2', fmt=qcow2 size=1073741824 encryption=off cluster_size=65536 lazy_refcounts=off
  • Step 3.编辑VM2虚拟主机的配置文件,找到定义磁盘镜像的<disk>标签, 将该标签及其包含的内容复制一份在其后。

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    $ virsh edit vm2
    37 <disk type='file' device='disk'>
    38 <driver name='qemu' type='qcow2'/>
    39 <source file='/var/lib/libvirt/images/vm2.qcow2'/>
    40 <target dev='vda' bus='virtio'/>
    41 <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/>
    42 </disk>
    43 <disk type='file' device='disk'>
    44 <driver name='qemu' type='qcow2'/>
    45 <source file='/var/lib/libvirt/images/vm2-1.qcow2'/> <!--修改点: 磁盘镜像名称-->
    46 <target dev='vdb' bus='virtio'/> <!--修改点: 物理磁盘名称-->
    47 <address type='pci' domain='0x0000' bus='0x00' slot='0x17' function='0x0'/> <!--修改点: 一定插槽值不能重复-->
    48 </disk>
    # 编辑了域 vm2 XML 配置。
  • Step 4.修改完VM2虚拟机配置后保存:wq之后重启libvirtd服务, 之后采用命令启动虚拟机

    1
    2
    3
    4
    5
    6
    7
    8
    [[email protected] ~]# systemctl restart libvirtd.service
    [[email protected] ~]# virsh list --all
    Id 名称 状态
    ----------------------------------------------------
    - vm1 关闭
    - vm2 关闭
    [[email protected] ~]# virsh start vm2
    域 vm2 已开始
WeiyiGeek.VM2配置升级

WeiyiGeek.VM2配置升级
